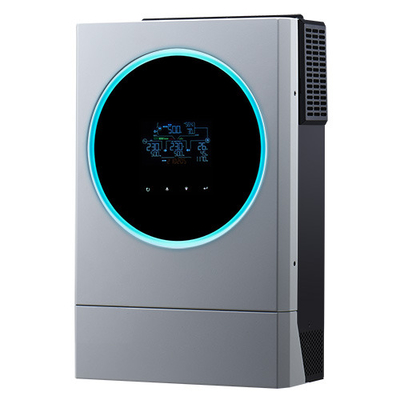

3.6 KW 5.6KW 8KW Solar Power Inverter Touch Button With 4.3 Colored LCD Off Grid Inverter Without Battery MPPT Inverter 119*313.6*422.8mm

1 piece
MOQ
$292.00 - $295.00
Prijs
3.6 KW 5.6KW 8KW Solar Power Inverter Touch Button With 4.3 Colored LCD Off Grid Inverter Without Battery MPPT Inverter 119*313.6*422.8mm
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: VM IV 3600
Input Voltage: 120V dc-500V dc
Output Voltage: 230V
Output Current: 10.9-45.5A
Output Frequency: 50/60Hz
Output Type: Single
Size: 119*313.6*422.8mm
Type: DC/AC Inverters
Inverter Efficiency: 90-93%
Certificate: CE
Warranty: 12 moths
Weight: 10kg
Inverter type: Single Phase Inverter
Rated power: 3600w
Color: White
Output waveform: Pure Sine Wave Solar Inverter
Battery voltage: 24V DC
Controller: MPPT 120A
Maximum PV Array Power: 4000W
MPPT Range @ Operating Voltage: 120-450VDC
Maximum PV array open circuit voltage: 500VDC
OEM: OEM Accepted
Basis informatie
Certificering: CE
Model Number: VM IV 3600
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Carton box
Supply Ability: 8000 Piece/Pieces per Month
Productomschrijving
Products Description

HY VMlll Series

VM IV is the fourth-generation off grid inverter with rich new functions. In addition to enhanced charging power, VM IV also comes with a built-in Wifi function, mobile monitoring can be carried out though mobile applications. Data can be accessed and recorded in the inverter, which is convenient for tracking the operation status of the inverter. USB on-the-go function for easy rewriting of internal parameters, data downloads, and softeware updates. Battery independency design enhances this inverter to operate without battery connected.

Main Features

1. Customizable status LED ring with RGB lights.
2. Touchable button with 4.3" colored LCD.
3. Built-in Wifi for mobile monitoring(APP is available).
4. Supports USB On-the-Go function.
5. Data log events stored in the inverter
6. Reserved communication port(RS485, CAN-BUS or RS232 for BMS)
7. Battery independent design.
8. Battery equalization extends lifecycle
9. User-friendly LCD operation
10. Enhanced charging power.
Model
VM IV 3600
VM IV 5600
RATED POWER
3600VA/3600W
5600VA/5600W
Parallel Capacity
No
No
Input
Voltage
230VAC
Selectable Voltage Range
170-280VAC (for personal computers)
90-280VAC (for home appliances)
Frequency Range
50Hz/60Hz (auto sensing)
Output
AC Voltage Regulation (Batt.mode)
230VAC±5%
Surge Power (5 seconds）
7200VA
11200VA
Efficiency (peak)
90%-93%
Transfer Time
10ms(for personal computers); 20ms (for home appliances)
Waveform
Pure sine wave
Battery&
AC
charger
Battery Voltage
24VDC
48VDC
Floating Charge Voltage
27VDC
54VDC
Overcharge Protection
33VDC
63VDC
MAX PV Array Power
4000W
6000W
MPPT Range@ Operating Voltage
120-450VDC
Maximum PV Array Open Circuit Voltage
500VDC
Max. Solar Charge Current
120A
120A
Max. AC Charge Current
100A
100A
Max. Charge Current
120A
120A
Physical
Dimension, D*W*H(mm)
119*313.6*422.8
Net Weight (kgs)
10KG
12KG
Operating
Environment
Humidity
5%-95% relative humidity ( non-condensing)
Operating Temperature
0℃ -55℃
Storage Temperature
-15℃ -60℃
