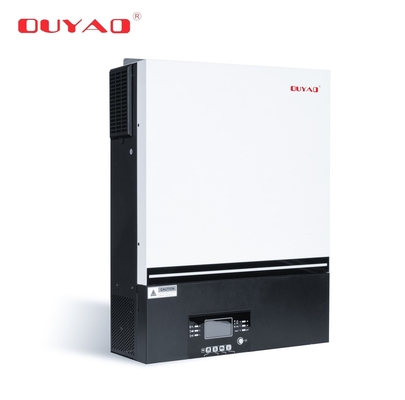

7.2KW Ouyad Max 48V 230V Off Grid Porcelain Inverter Solar Hybrid Work Without Battery With MPPT Charger 147.4 x 432.5 x 553.6mm

1.0 piece
MOQ
$755.00(1 - 10 pieces) $686.00(>=11 pieces)
Prijs
7.2KW Ouyad Max 48V 230V Off Grid Porcelain Inverter Solar Hybrid Work Without Battery With MPPT Charger 147.4 x 432.5 x 553.6mm
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: Max7200
Input Voltage: 230VAC
Output Voltage: 230VAC±5%
Output Current: 80A
Output Frequency: 50Hz/ 60Hz
Output Type: Single
Size: 147.4 x 432.5 x 553.6mm
Type: DC/AC Inverters
Inverter Efficiency: 90%-93%
Certificate: CE,IEC
Warranty: 1 years
Weight: 18.4kg
Battery voltage: 48VDC
Output waveform: Pure Sine Wave
Controller type: MPPT
MPPT Range: 90~450VDC
Parallel Capacity: yes,6 units
Max PV Array power: 8000w(4000w*2)
Lead Time: 7 days for sample; 25 days for bulk order.
Basis informatie
Certificering: CE,IEC
Model Number: Max7200
Betalen & Verzenden Algemene voorwaarden
Packaging Details: carton
Productomschrijving
Products Description

Max Series

Main Features

1. Customizable status LED bar with RGB lights 2. Built-in WiFi for mobile monitoring (Android/iOS App are available) Support USB on the go function 3. Reserved communication port for BMS (RS485, CAN-BUS or RS232) Replaceable fan design for ease of maintenance 4. Battery independent design 5. Configurable AC/PV output usage timer and prioritization Selectable high power charging current 6. Selectable input voltage range for home appliance and personal computers Compatible to Utility Mains or generator input 7. Built-in anti-dust kit 8. Optional DC output for DC fan, LED bulb, router and so on Parallel operation up to 6 units only available for 7.2kVA
Model
Max 3600
Max 7200
Max 8000
Max 6500
RATED POWER
3600VA/3600W
7200VA/7200W
8000VA/8000W
6500VA/6500W
Parallel Capacity
No
Yes, 6 units
Input
Voltage
230VAC
120 VAC
Selectable Voltage Range
170-280VAC (for personal computers)
90-280VAC (for home appliances)
90-140 VAC (For Personal Computers)
80-140 VAC (For Home Appliances)
Frequency Range
50Hz/60Hz (auto sensing)
Output
AC Voltage Regulation (Batt.mode)
230VAC±5%
120VAC±5%
Surge Power (5 seconds）
7500VA
15000VA
15000VA
15000VA
Efficiency (peak)
90% - 93%
Transfer Time
10ms(for personal computers); 20ms (for home appliances)
Waveform
pure sine wave
Battery&
AC
charger
Battery Voltage
24VDC
48VDC
48VDC
48VDC
Floating Charge Voltage
27VDC
54VDC
54VDC
54VDC
Overcharge Protection
33VDC
66VDC
66VDC
66VDC
Max. AC Charge Current
80A
80A
80A
120A
MAX PV Array Power
4000W
8000W(4000W*2)
8000W(4000W*2)
8000W(4000W*2)
MPPT Range@ Operating Voltage
120~450VDC
90~450VDC
90~450VDC
90~230VDC
Maximum PV Array Open Circuit Voltage
500VDC
500VDC
500VDC
250VDC
Max. Solar Charge Current
80A
80A
80A
120A
Max. Charge Current
80A
80A
80A
120A
Physical
Dimension, D*W*H(mm)
147.4 x 432.5 x 553.6
Net Weight (kgs)
14.1KG
18.4KG
18.4KG
18.4KG
Communication Interface
USB/RS232/RS485/WiFi/Dry-contact
Operating
Environment
Humidity
5%-95% relative humidity ( non-condensing)
Operating Temperature
-10℃ -50℃
-10° C to 40°C
Storage Temperature
-15° C to 60°C
Hot Sale
Working Procedure
Factory Strength
Packing & Shipping
FAQ

Q1.Which payment method do you accept? We accept T/T,LC,D/P D/A,MoneyGram,Credt Card. PayPal,Western Union,Cash,Escrow.
Q2.Can I get a sample?
Please send me the product link and I will reply as soon as possible.
Q3.What is your shipping methods? We use UPS, DHL, FedEx, EMS, TNT or the shipping agent as your request.
Q4.what is the discount ? Please tell me the goods and quantity you want, and Iwill give you a more accurate quotation as soon as possible.
Q5.how long is your production cycle ? The production cydle for each product is different. If you need further clarfication, send me the product link, and I will reply as soon as possble.
Q6.where is your factory located ? You can find relevant information on the home page of the store or the company profile. You can also tel me the exact question and I will reply to you as soon as possible
Q7.how is the quality ? You can find relevant information on the home page of the store or the company profle. You can also tel me the exact question and I will reply to you as soon as possible.
Q8.How about the Warranty? One year (Note: If have quality problem without man made reason within warranty, we can supply spare part but customer need to pay the freight charge).
Q9.How long will it take to ship to my address? For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide those details so that Ican quote the most cost-effective option.
Q10.Can I customize products? Yes. Let me know the specfc customization requirements, andI will get back to you as soon as possible.
