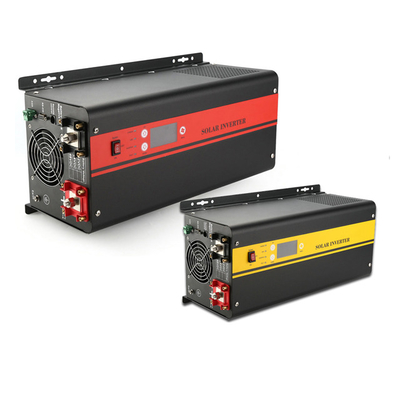

Solar Power System Home 3000W 12v 24v 48v DC to Controller 60A AC 220v 110v MPPT Solar Charge 35A Inverter Charger

1 Piece
MOQ
Solar Power System Home 3000W 12v 24v 48v DC to Controller 60A AC 220v 110v MPPT Solar Charge 35A Inverter Charger
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: TPS-3000
Input Voltage: 12V/24V/48V
Output Voltage: 110V/120V/220V/230V/240V
Output Current: 15A
Output Frequency: 50Hz/60Hz
Output Type: Single
Size: 455*255*180mm
Type: DC/AC Inverters
Weight: 25kgs
Product name: Solar Inverter
Output waveform: Pure Sine Wave
Application: Solar Power System Home
Rated power: 3000w
Color: Black and yellow
Peak power: 6000w
Solar charge: 60A mppt
Display: LED
OEM: Accepted
AC charger: 50A max
Basis informatie
Model Number: TPS-3000
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Gift box for individual package+Export carton box
Supply Ability: 1000 Piece/Pieces per Month
Productomschrijving

3KW 3KVA 12v 24v 48v DC to AC 220v 110v pure sine wave power solar inverter 60A mppt charger 35A AC charger AGS generator

This inverter power supply offers an AC power solution where power outage occur or where AC power is not available, it charges

the solar power into the batteries and converts 12V/24V/48V DC power to 110V/ 220V standard AC power, Built in low frequency

transformer guarrantees its strong load capability makes it an ideal inverter in home & small business solar power system. Its

built-in UPS system automatically switch the inverter from AC bypass output to battery back up output. Advanced DSP controlled

integrated guarantees maximum efficiency and reliability. Digital LCD display, 1000W~6000W, pure sine wave form output,UPS

function, built-in 10A-50A adjustable AC charger, built-in 60A MPPT solar charger controller. Reliable continuous long time

performance, Full protection systems: Overheat protection, Overload protection, Short circuit protection, etc.

The listed prices don’t include tax may imposed at destination nor freight.

ModelOutput power(W)Input voltage(V)Output voltage(V)Packing Sizes(MM)PCS PER CARTONG.W/Carton(KG)
TPS-10001000w12v/24v/48v110v/220v570x310x300118
TPS-20002000w12v/24v/48v110v/220v570x310x300123
TPS-30003000w12v/24v/48v110v/220v570x310x300125
TPS-40004000w24v/48v110v/220v570x310x300131
TPS-50005000w24v/48v110v/220v760x310x300135
TPS-60006000w24v/48v110v/220v760x310x300140

PRODUCT SPECIFICATIONS

MODELTPS-1000TPS-2000TPS-3000TPS-4000PS-5000TPS-6000
Power capacity1000W2000W3000W4000W5000W6000W
AC Mode
Input Wave formPure sine wave
Rated Voltage120VAC / 230VAC (Selectable)
Input Frequency50HZ / 60HZ (Auto detect or manual set)
Under Frequency Protection<47HZ(50HZ) / <57HZ(60HZ)
Over Frequency Protection>53HZ(50HZ) / >63HZ(60HZ)
Output wave formSame as input(bypass mode)
Overload protectionCircuit Breaker
Short Circuit protectionCircuit Breaker
Efficiency >95%
Transfer time<10mS
Inverter Output
Output wave formPure sine wave
Continuous power(W)1000W2000W3000W4000W5000W6000W
Surge power(W)2000W4000W6000W8000W10000W12000W
power factor1.0
Rated output voltage120VAC / 230VAC (Programmable)
Output voltage precision±10%
Output frequency precision50HZ±0.3HZ 60HZ±0.3HZ
Inverter input
Rated input voltage12V/24V/48VDC
Min. Starting Voltage10V/20V/40VDC
Low voltage alarm10.5V/21V/42VDC
Low voltage protection10V/20V/40VDC
High voltage alarm16V/32V/64VDC
AC Charger
Charge voltageAuto-set according to battery type and voltage
Charge current10A/15A/20A12.5A/20A/30A25A/35A25A/35A40A/50A40A/50A
Over-charge voltageAuto-set according to battery type and voltage
MPPT Solar Charger Controller
MPPT Operation voltage range15VDC-30VDC / 35VDC-50VDC / 70VDC-100VDC
Maximum open circuit Voltage150VDC
Maximum charge current60A
Maximum efficiency97%
Physical
Dimensions(LXWXH)455X225X180MM630X225X180MM
Net weight(kgs)15.52024.527.53237

HOT SELLING RELATED PRODUCTS

Entry level power inverter 12V/24V/48V to 220V 300W-1000W PI Series

Modified sine wave inverter charger 12V/24V/48V to 220V /110V 50Hz/ 60Hz 1000W-3000W EPI series

Pure sine wave inverter charger 12V/24V/48V to 220V /110V 50Hz/ 60Hz 1000W-5000W EPS series

Company Information

Foshan Ktac Technology Co., Limited is an expert designer & manufacturer of power inverter.Located in Foshan, With our facility and a highly professional and motivated team of engineering, manufacturing, quality assurance, materials management, IT, financial, and sales personnel, We manufacture car inverters, solar inverters, power transformer, uninterruptible power supply, MPPT solar charge controller, Automatic voltage regulators.


Applications for Ktac inverter include electric lights, kitchen appliances, microwaves, power tools, TVs, radios,computers, office electrical equipments ,small factory electrical equipments and machineries, AC power supply for marine boats, cars, trucks, lead acid battery charging,laptop charging, Home appliances such as washing machine,fridge, freezer, TV, fans, Air conditioner.With perseverant concentration in power protection and profound understanding of manufacturing and deep awareness of importance of product quality and reliability, Haneng is confident of our ability to support your requirements by providing the highest quality and reliable products, delivered on time, and at competitive prices. Whether it's an industrial, commercial, residential, aerospace,airport security, or medical application,Haneng is uniquely positioned to provide products with engineering innovation,proven quality, and high reliability.

3KW 3KVA 12v 24v 48v DC to AC 220v 110v pure sine wave power solar inverter 60A mppt charger 35A AC charger AGS generator
